KUSBX - Kycon USB Type A Dual Port PCB Sockets (KUSB2)

From: £0.49

Through Hole Right Angle PCB Mount,
Dual Stack Type A
Supports Hot Plugging
Gold Plated Contacts
CSA/NRTL Certified File No. LR78160 / UL File No. E13434

Part No.	Stock Qty	1+	100+	500+	1000+	5000+	Qty
KUSBX-AS2N-B Type A - Black	1573 in stock	£0.785	£0.74	£0.68	£0.585	£0.52	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBX-AS2N-B30 Type A - Black	Standard delivery 12 - 14 working days *	£1.15	£1.15	£0.79	£0.75	£0.49	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBX-AS2N-W Type A - White	Standard delivery 12 - 14 working days *	£0.74	£0.74	£0.69	£0.51	£0.51	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBX-AS2N9-1-BL30 USB 3.2 Gen 1, Blue	Standard delivery 12 - 14 working days *	£2.42	£2.42	£2.26	£1.75	£1.69	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insulator: PBT Thermoplastic, UL 94V-0 Rated, Black or White or Blue

Contacts: Phosphor Bronze

Contact Plating: Selective or 30μ" Gold on Contact Area, Tin on Soldertails, All over Nickel

Shell: Brass, Nickel Plated

Insertion Force: 3.57kg Max.

Extraction Force: 1.02kg Min.

Durability: 1500 Mating Cycles Min.

Rated Voltage: 30V AC

Rated Current: 1.5A

Contact Resistance: 30 milliohms Max

Insulation Resistance: 1000 Megohms Min.

Dielectric Withstanding Voltage: 750V AC

RoHS Compliant

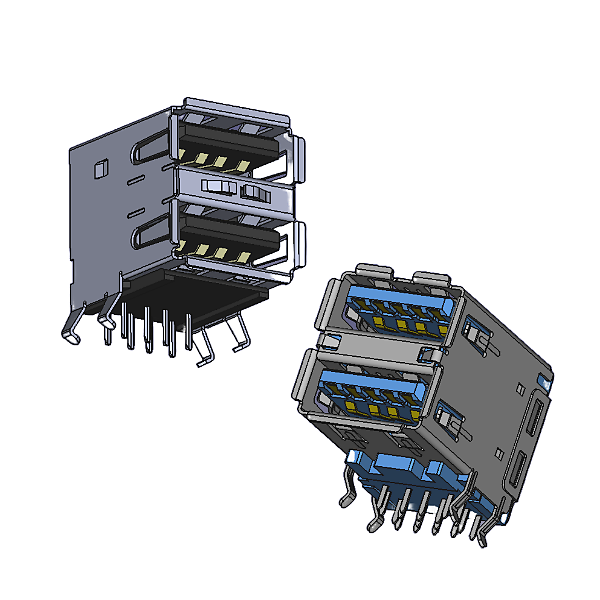

These Kycon USB Type A dual port stacked PCB sockets are available with black or white inserts, or blue inserts for USB 3.2 type. Durable to 1500 mating cycles min.
