| Part No. | Stock Qty | 10+ | 500+ | Qty |
|---|---|---|---|---|
|
STX-3500-3NTR
3 Pin Stereo |
1734 in stock | £0.79 | £0.56 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Materials and Finish
Housing: High Temperature Thermoplastic, Black Colour, UL94V-0 Rated
Terminals: Copper Alloy, Silver Plating over Nickel Underplate
Mechanical Characteristics
Insertion Force: 3.0kg Max.
Extraction Force: 0.2kg Min.
Durability: 5000 Mating Cycles
Electrical Characteristics
Contact Resistance:
Before Durability Test 50 milliohms Max.
After Durability Test 100 milliohms Max.
Insulation Resistance: 100 Megohms Min. at 500V DC
Dielectric Withstanding Voltage: 500V AC RMS for 1 Minute
Operating Temperature: -25°C to + 85°C

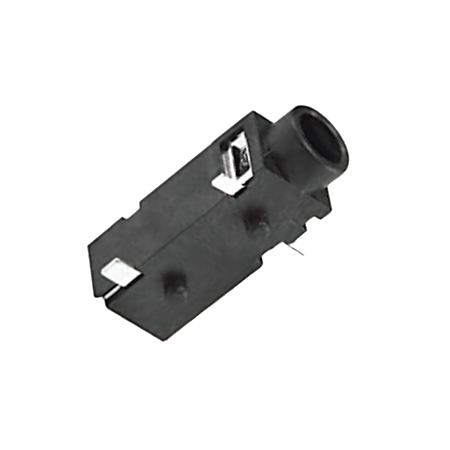

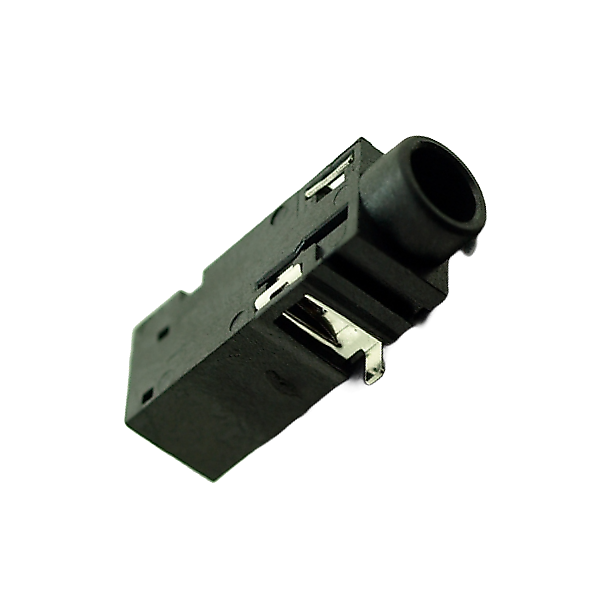

Kycon STX-3500 Series, Surface Mount 3.5mm Stereo Jack. Product suitable for Audio Applications for Computers and Multimedia. All Plastic with non-threaded barrel, CSA/NRTL Certified File No. LR78160 product.
